Current vs. Volts

Attribute	Current	Volts
Definition	The flow of electric charge	The unit of electromotive force
Symbol	I	V
Unit	Ampere (A)	Volts (V)
Measures	Flow of electrons	Electrical potential difference
Formula	I = Q/t	V = W/Q

Definition

Current and voltage are two fundamental concepts in the field of electricity. Current is the flow of electric charge through a conductor, measured in amperes (A). It is the rate at which electric charge flows past a point in a circuit. Voltage, on the other hand, is the difference in electric potential between two points in a circuit, measured in volts (V). It is the force that drives the current through a circuit.

Relationship

Current and voltage are closely related in an electrical circuit. According to Ohm's Law, the current flowing through a conductor is directly proportional to the voltage across it, and inversely proportional to the resistance of the conductor. This relationship can be expressed as I = V/R, where I is the current, V is the voltage, and R is the resistance. In other words, the higher the voltage, the greater the current flow, assuming the resistance remains constant.

Units of Measurement

As mentioned earlier, current is measured in amperes, which is the base unit of electric current in the International System of Units (SI). One ampere is defined as the flow of one coulomb of charge per second. Voltage, on the other hand, is measured in volts, which is the base unit of electric potential difference in the SI system. One volt is defined as the potential difference across a conductor when one ampere of current flows through it and dissipates one watt of power.

Representation

Current is typically represented by the symbol 'I' in equations and circuit diagrams. It is also commonly denoted by the letter 'A' for amperes. Voltage, on the other hand, is represented by the symbol 'V' in equations and circuit diagrams. It is also denoted by the letter 'V' for volts. In circuit diagrams, current is shown as a flowing arrow, while voltage is represented by a plus and minus sign indicating the polarity.

Effects

Current and voltage have different effects on electrical components in a circuit. Current is responsible for heating up components due to the Joule heating effect, which is the conversion of electrical energy into heat. Excessive current can damage components and cause them to fail. Voltage, on the other hand, determines the speed at which electrons flow through a circuit. Higher voltage can lead to increased power consumption and potential hazards if not properly controlled.

Applications

Current and voltage are used in various applications in everyday life. Current is essential for powering electrical devices and appliances, as it is the flow of charge that provides the energy needed for operation. Voltage is used to regulate the power supply to these devices, ensuring they receive the correct amount of energy to function properly. Both current and voltage are crucial for the operation of electronic devices, from smartphones to computers.

Measurement

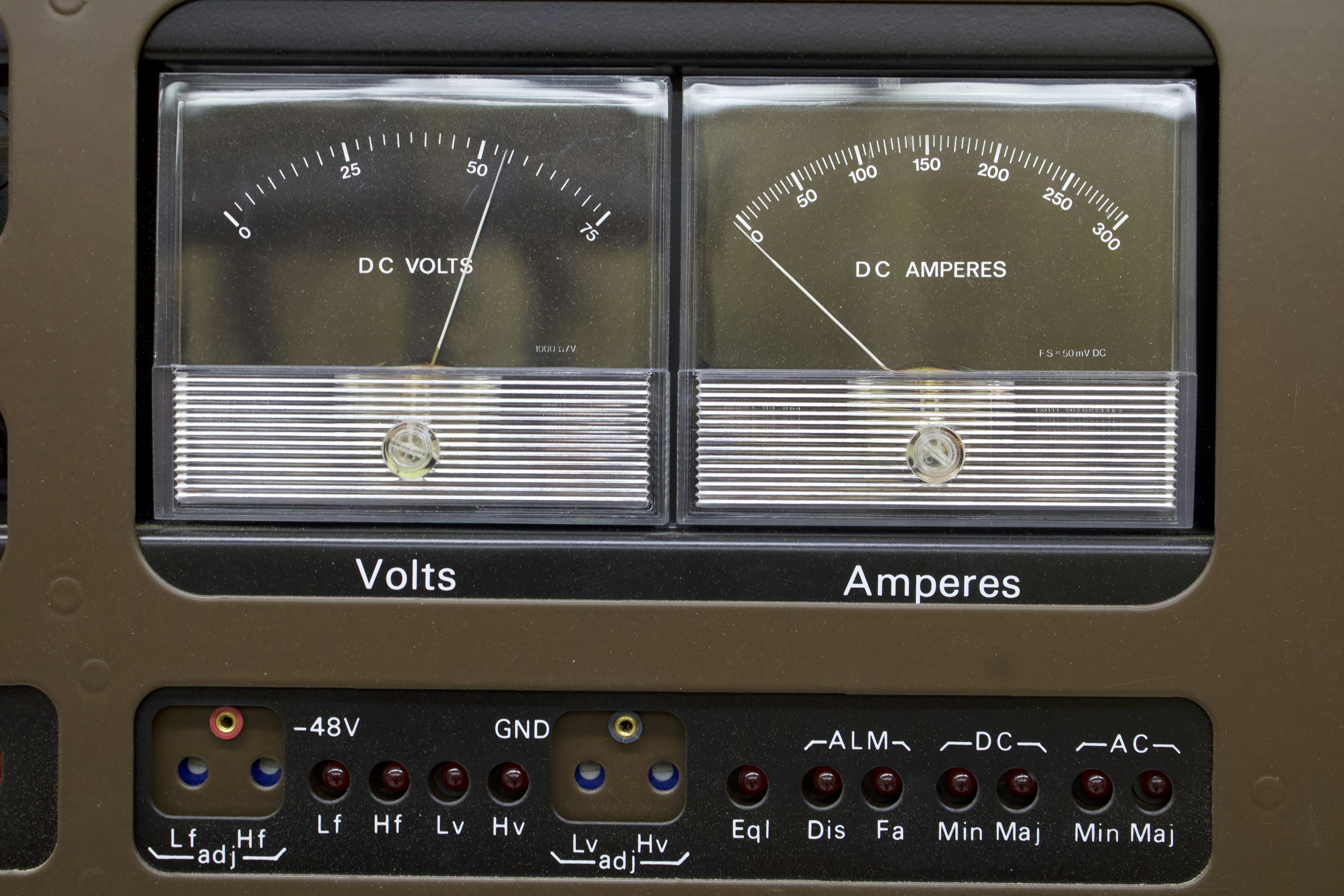

Current and voltage can be measured using different instruments. Current is typically measured using an ammeter, which is connected in series with the circuit to measure the flow of charge. Voltage, on the other hand, is measured using a voltmeter, which is connected in parallel with the circuit to measure the potential difference between two points. Both instruments provide accurate readings of current and voltage in a circuit.

Conclusion

In conclusion, current and voltage are essential components of electricity that work together to power electrical devices and circuits. While current represents the flow of electric charge, voltage determines the force driving this flow. Understanding the differences and relationships between current and voltage is crucial for designing and troubleshooting electrical circuits. By grasping these concepts, engineers and technicians can ensure the safe and efficient operation of electrical systems.
